Fiber Optic Fast Connector SC UPC For FTTH Drop Cable Field Termination

Name: Fiber Optic Fast Connector SC UPC For FTTH Drop Cable Field Termination
Brand: TTI Fiber
Price: 1 USD

China Fiber Optic Fast Connector SC UPC For FTTH Drop Cable Field Termination wholesale

Brand Name : TTI Fiber

Model Number : SC/UPC

Certification : ISO 9001, ISO 14001, REACH， ROHS, CE and CPR certificates

Place of Origin : China

MOQ : 1000

Price : Negotiable

Payment Terms : T/T, , Monthly settlement

Supply Ability : 10000pcs/day

Delivery Time : 3-5days

Packaging Details : 1PCS/PE Bag

product name : fast connector

brand : TTI

mode : sm

insertion loss : <=0.3db

reusable times : >10 times

tensile strength : >50N

Type : SC/UPC

Contact Now

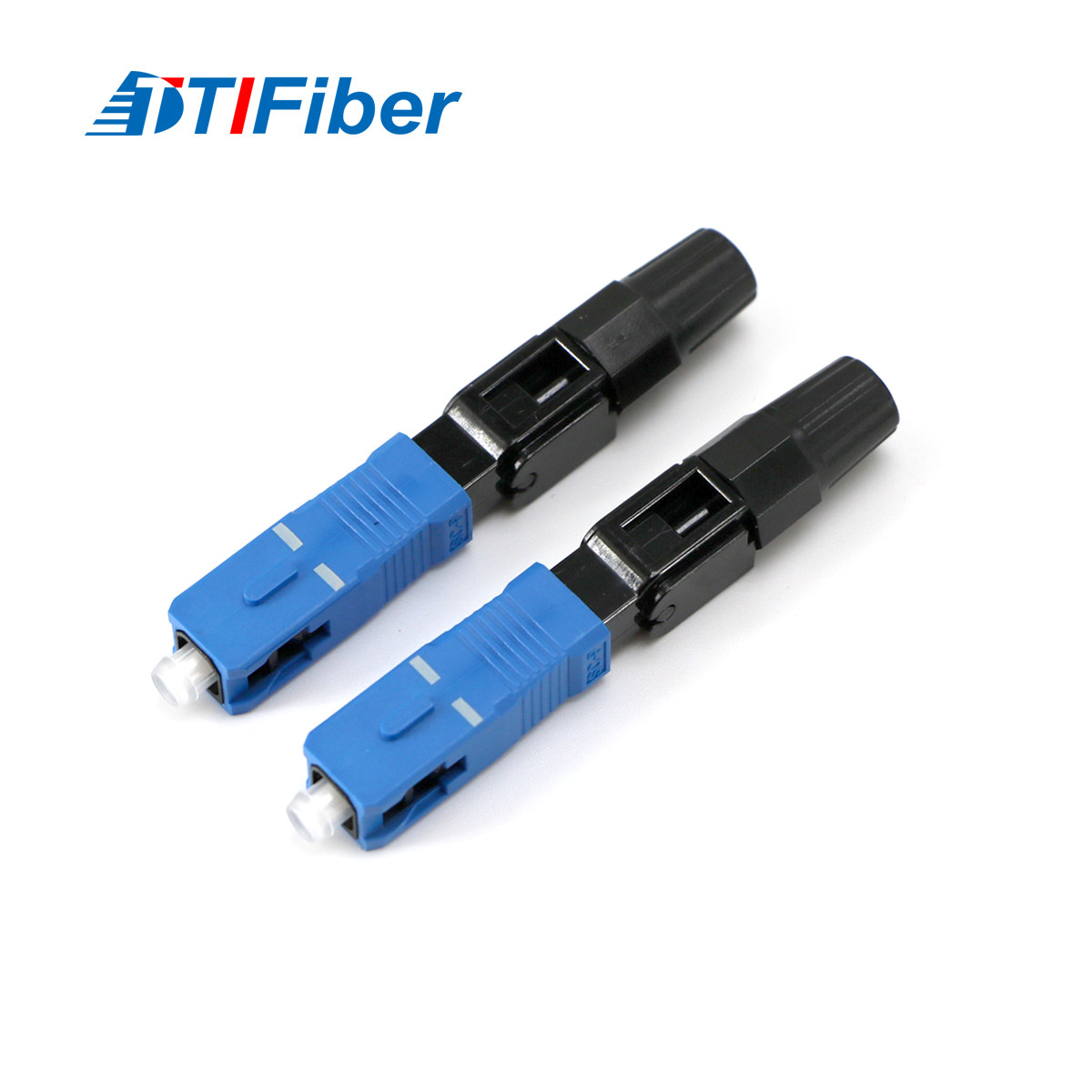

Fiber Optic Fast Connector SC UPC Quick Connector For FTTH Drop Cable field termination

Fiber Optic Fast Connector

Model: OFC-FCA-SC

Connector: SC

Ferrule: UPC

Dimension: 50MM

Fiber Mode: SM MM

Cable O.D.:2.0*3.0MM

Simple Specification:

Intersion Loss:

UPC≤0.3dB

APC ≤0.3dB

Return Loss:

UPC ≥45dB

APC ≥50dB

Tension: ≥100N

Operation Temperature: -40~+75℃

SC quick assembly connector has easy assembly and excellent stability.

Feature:

No special assembling tool
Easy for learning technology by a simple assembling method (within 1 and half minutes)
Minimize the defect rate by features of removal and reusable.
Easy for assembling with mechanical splice and no polishing

Application:

Optical network maintaining and repair.
Local area network environment of connection.
Fiber optic distribution frame.
Terminal connection-leg of FTTH optic network.

Specification:

Article	value
Insertion loss	≤0.3 (max 0.4)
Return loss	≥60dB
Connector type	SC/APC
Cable	drop 3.0mm / flat 2x3mm cable
Fiber clamping force	≥3N
Tensile Strength	Typical ≥40N (Max 50N)
Online tensile strength 20N	IL variation (≤0.2dB) RL variation (≤5dB)
Working Temperature	-40℃ ~ +75℃
Can be repeatedly used	Possible

Ferrule Hole Sizes:
Singlemode
125.0+1/-0um, concentricity<=1.0um
125.5+1/-0um, concentricity<=1.0um
126.0+1/-0um, concentricity<=1.0um

Multimode
125um concentricity <=3um
127um concentricity <=3um
128um concentricity <=3um

Shipping:

Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
Airport to Airport: by air
Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

Fiber Optic Fast Connector SC UPC For FTTH Drop Cable Field Termination

Product Tags:

FTTH SC Fiber Optic Fast Connector

UPC Fiber Optic Fast Connector

FTTH Fiber Optic Connector

Fiber Optic Fast Connector SC UPC For FTTH Drop Cable Field Termination Images
